Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room

کیفیت خوب یخچال Display Deli برای فروش
کیفیت خوب یخچال Display Deli برای فروش
Thanks we received the 2 containers on time everything is good more than what we expected. Will send you all pictures soon.

—— Rukshana

The temperature performaces of all cabinets are perfect! We like them very much!

—— Diego

چت IM آنلاین در حال حاضر

Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room

چین Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room تامین کننده
Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room تامین کننده Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room تامین کننده

تصویر بزرگ :  Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room

جزئیات محصول:

Place of Origin: CHINA
نام تجاری: SINCOOL
گواهی: CE,CB, SASO
Model Number: CR

پرداخت:

Minimum Order Quantity: 1 Unit
قیمت: Negotiable
Packaging Details: Plywood Case
Delivery Time: 25 Days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 120Units per Month
Contact Now
توضیحات محصول جزئیات
Cooling System: Remote Bitzer Cooling System Room Panel: 100mm
Material: Prepainted Steel Door: Sliding Door
Compressor: Bitzer Thermostat: Dixell


Walk In Freezer Room with Sliding Door and Remote Bitzer Condensing Unit


Key Features:

⇒ Sizes: Customized

⇒ Temperature: +10 ~ -40 ℃ Customized

⇒ Voltage/Frequency: 220V/50Hz, 220V/60Hz, 380V/50Hz, 415V/50Hz

⇒ Room Panels Thickness: 70mm, 100mm, 150mm, 200mm, depends on the room temperature

⇒ Room Panels Material: Prepainted Steel, Stainless Steel 304, 0.5mm thick

⇒ Door: Hinged Door, Sliding Door

⇒ Door Hole Size: Customized

⇒ Condensing Unit: Monoblock or Remote

⇒ Compressor: Tecumseh (monoblock), Copeland, Bitzer

⇒ Optional Parts:

► Anti-slip aluminum or stainless steel floor

► Inside LED lamp

► Door Ramp

► Storage Shelf (stainless steel shelf, metal rack)


Standard Sizes Modular Walk-in Cooler & Freezer:


ModelDimensions (MM)Temerature Range (℃)Volume (M3)Door Hole Size (MM)
CR2224C/F2120*1920*2400-5~+10 / 0~-407.4720*1900
CR2324C/F2120*2880*2400-5~+10 / 0~-4011.4720*1900
CR2424C/F2120*3840*2400-5~+10 / 0~-4015.4720*1900
CR3324C/F3080*2880*2400-5~+10 / 0~-4017.1720*1900
CR3424C/F3080*3840*2400-5~+10 / 0~-4023.1720*1900
CR4424C/F4040*3840*2400-5~+10 / 0~-4030.1720*1900



Introduction:

Our modular cold room series is an integrated family of sandwich panels designed for quick cold room

assembly. The panel configuration has been reduced to a minimum, so the overall effect is to offer the

clients maximum design possibilities for cold rooms with a minimum amount of panels required on the

site. All products from the modular range can be easily assembled without the need for special tools.

Likewise they can be dismantled easily in order to move or enlarge them. The modular range has a wide

variety of applications from general food storage to mortuary chambers.

The Cold Room Sandwich panels compris of two steel skins that are injected with a high pressure

polyurethane foam, with tongue and groove jointing method.


Detailed Photos:

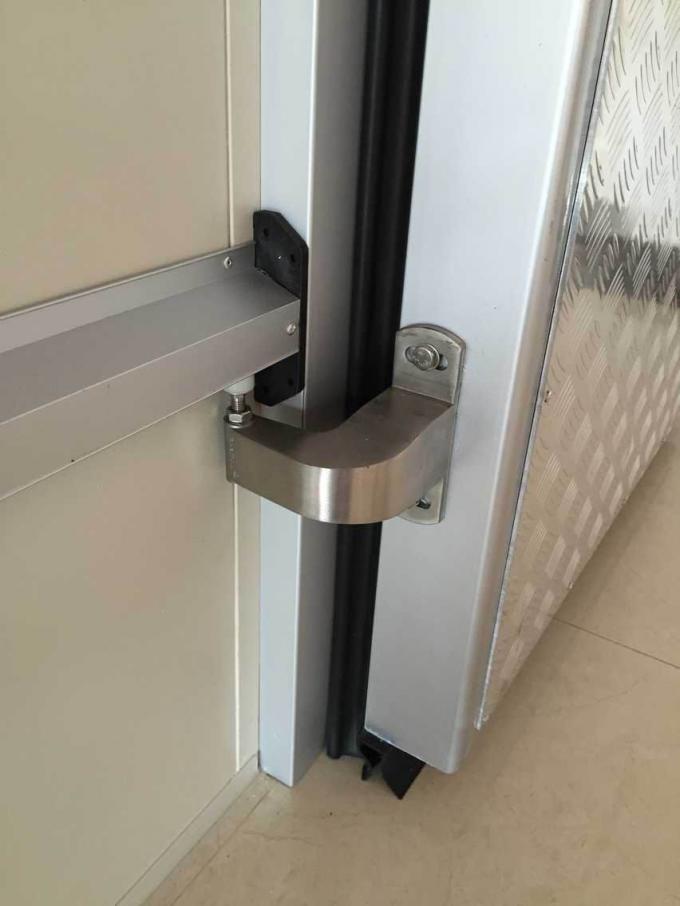

Sliding Door Bottom Channel

Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room

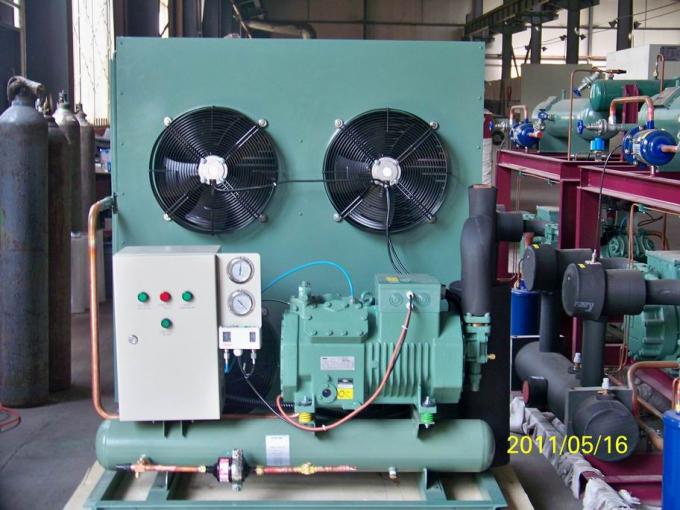

Air Cooled Bitzer Condensing Unit

Sliding Door Cold Storage Room , Commercial Kitchen Walk In Freezer Room
